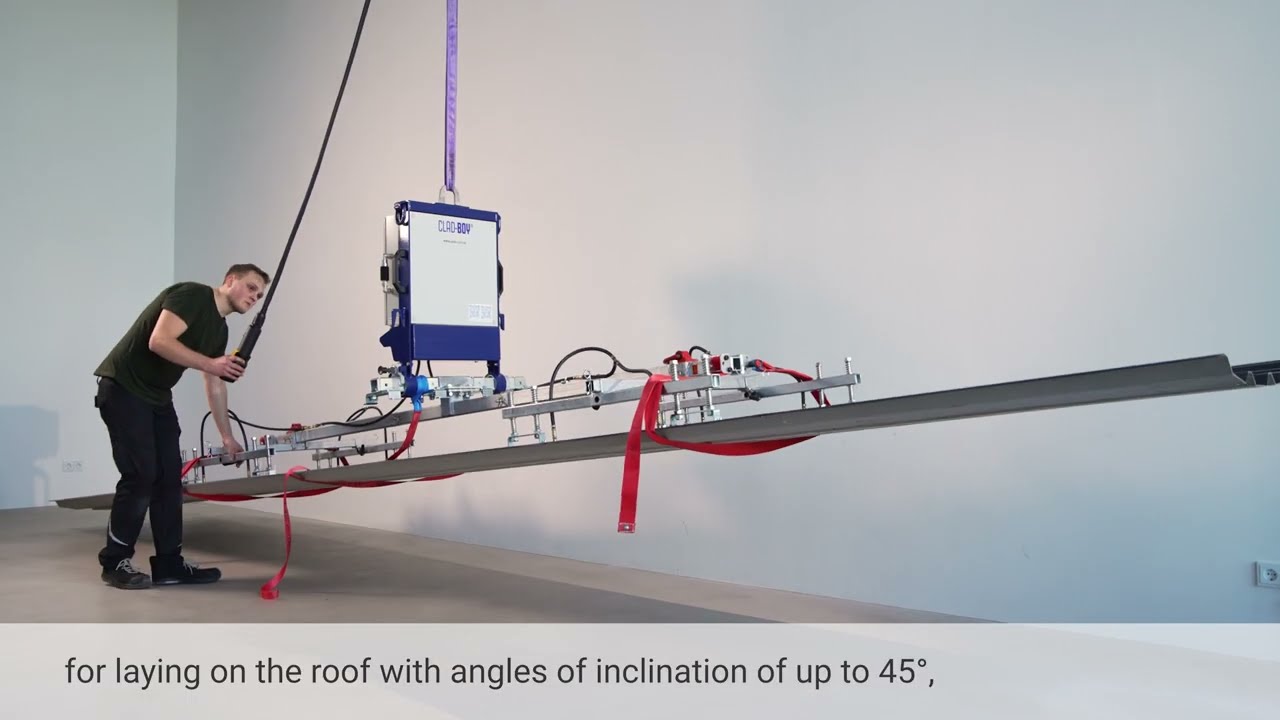

Strengths of the Clad-Boy®
Covers all tasks on the construction site thanks to the all-rounder suction plates, which can handle all types of sandwich elements and trapezoidal sheets for facades and roofs.
CLAD-BOY – the original! Specially designed for use on construction sites: The CLAD-BOY is absolutely weatherproof, extremely resistant to impact and also impresses with its low unladen weight.
Versatile and robust, suitable for both roof and wall mounting
Long running and short charging times thanks to the battery-powered vacuum generator
Maximum versatility and tool-free conversion due to the modular and pluggable, hot-dip galvanised main cross beams
Highest safety standards because of an audible and visual warning signal when the battery is low and/or the vacuum level drops
Up to 70 % longer battery life thanks to the Ecomatic pump control module included as standard, which ensures intelligent activity control measured by the vacuum level.
70–80 % longer service life than conventional products thanks to the tried-and-tested, quickly replaceable and UV-resistant suction plates
Convenient transport and storage options for all attachments and the vacuum lifter thanks to the specially designed STORE-BOY XL storage unit, which also includes an equipment box for stowing all tube or suction plate components.
Product variants
The CLAD-BOY vacuum lifter is available in different versions with:
- horizontal load capacities from 300 to 500 kg
- vertical load capacities from 240 kg
- 6 to 16 suction plates
- different suction plate dimensions, traverse lengths, etc.
We would be happy to advise you on the selection of the right device for your application.
Optional configuration / accessories
STORE-BOY XL
The add-on for smart, safe and affordable transport, can also be used as a mounting frame
Article code suffix: SBXL-CB-1210x780
Cross beam for roof and wall
For installing panel elements with a higher angle of inclination
Article code suffix: KT-DW-90°
Suction plate holder for horizontal wall mounting
Recommended for cushioning
Suction plate holder for vertical wall mounting
Recommended for cushioning
Sponge rubber suction plate 80x600 mm
Compensates for higher structural unevenness (beading)
Article code suffix: SPL-CB-80x600M
Protective covers for 80x400 mm suction plate
Recommended for protecting the 80x400 mm suction plate during transport
Article code suffix: SUEZ-CB-80x400 Protective covers for 36x780 mm all-rounder suction plate
Recommended for protecting the 36x780 mm suction plate during transport
Article code suffix: SUEZ-CB-36x780
Upgrade kit with 8 all-rounder suction plates
You can bring our previous CLAD-BOY versions up to date with the upgrade kit:
Universal suction plate that covers every type of panel and installation.
Article code suffix: UK-CB-8L/36x780
